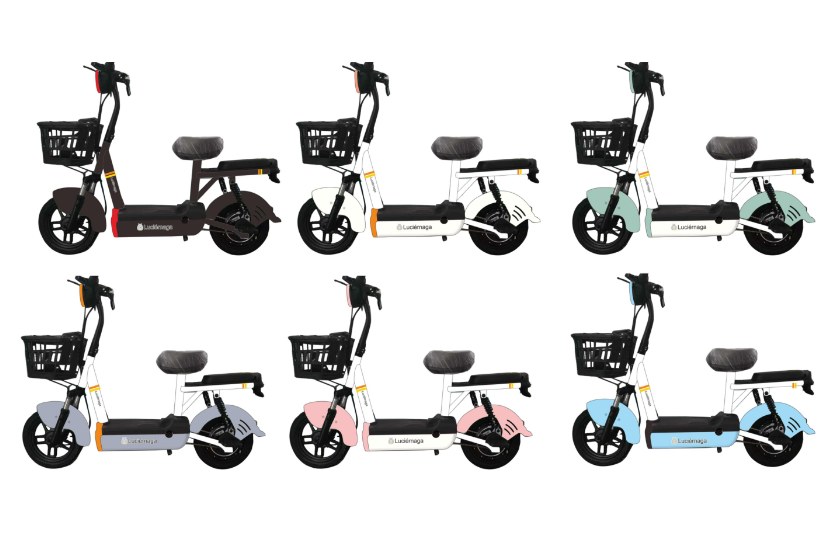

Mini Electric Bicycle
WY-Paden-2025Wangye
WY-Paden
The WY-Paden mini electric bicycle from Wangye (王野) pairs a 350W motor with a 48V12Ah Lead-acid battery to deliver a top speed of 25km/h and up to 40km of range per charge. Front and rear drum brake brakes and 14*2.5 Vacuum tires provide safe, controlled riding. A proven, OEM-ready electric bicycle built for urban commuting in the Southeast Asia, Africa and South Asia markets.
Zielmärkte
Southeast AsiaAfricaSouth Asia
wangyeelectric-bicycleoemwholesale
Technical Specifications
| Motor | 350W Dc permanent magnet brushless (直流永磁无刷) |
| Battery | 48V12Ah Lead-acid battery |
| Range | 40km |
| Top Speed | 25km/h |
| Charging Time | 48V2A |
| Payload | 140 kg |
| Weight | 45 kg |
| Dimensions | 1450mm×635mm×1050mm |
| Brake System | Front and rear drum brake |
| Tires | 14*2.5 Vacuum tire |
| Colors | Black, White, Red, Blue |
Hauptmerkmale
Dc brushless vector (直流无刷矢量) controller
7° max climbing angle
720mm seat height
135mm ground clearance
1020mm wheelbase
48V2A charger
DC 48V nominal voltage
